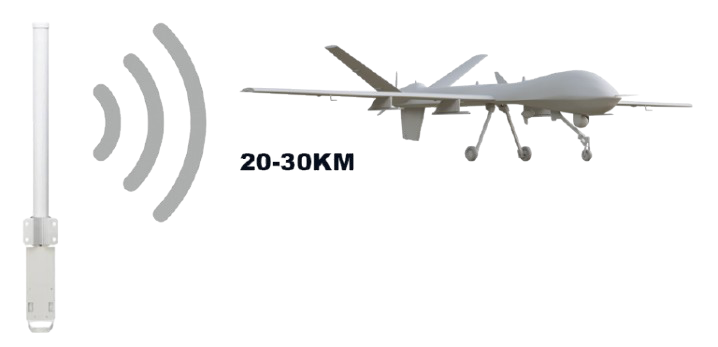

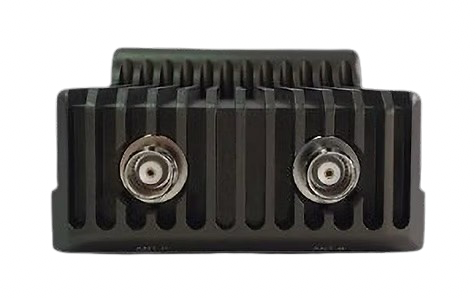

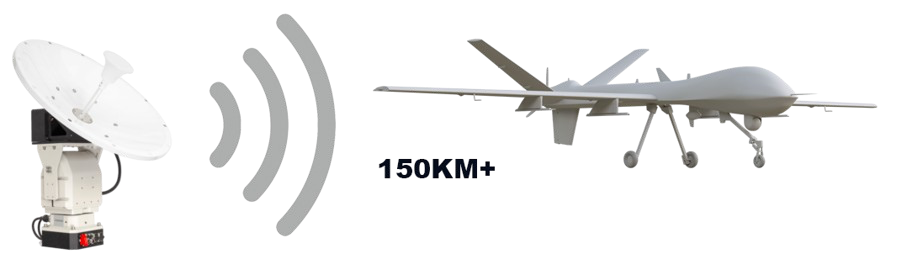

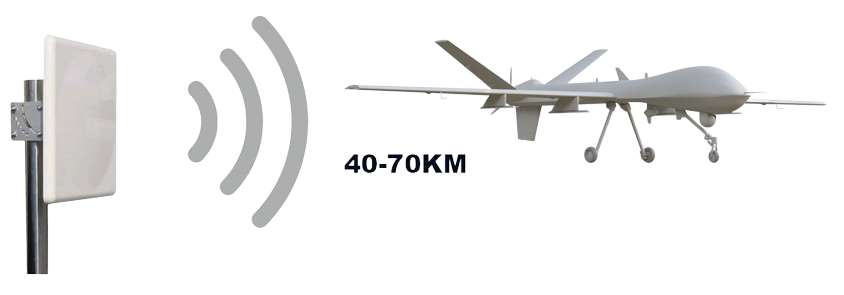

Compact, multi-frequency PTP/PTMP/MESH Wireless link based on a proprietary communications protocol with 3 transparent ethernet and multiple TTL ports. EMX is based on a proprietary TDD/FDD mobile communication standard, making it exceptionally well suited for industrial and surveillance applications in challenging environments, while requiring virtually no setup and extra testing equipment. Operating in the 700-900MHz, 1.3-1.4GHz and 2.4GHz frequency bands with 500mW of output power, EMX is capable of creating wireless networks well in excess of 20KM with maximum throughput of 28MBPS. External amplifiers can also be used to extended coverage to 150KM+ LOS or 3KM+ NLOS.

EMX further enhances RF flexibility by allowing users to adjust channel bandwidths between 1.4, 3, 5, 10, and 20MHz. By incorporating optional 5 or 10-watt external amplifiers, EMX can serve as an LTE Base station for municipalities, offering coverage up to 30+KM from a radio tower in a typical urban setting. EMX leverages existing 4G LTE standard protocols, including AES Encryption, dynamic frequency selection, and adaptive modulation. It has been specifically optimized to meet the requirements of mission-critical video applications and provides customizable Quality of Service (QoS) settings for end users.

EMX stands out as the perfect option for various applications, such as surveillance, mobile robotics, body-worn video, and data communications, due to its compact size, built-in tools, and RF flexibility. Our radio solutions are available in both finished boxed product and OEM PCB formats, allowing seamless integration into Robotics and surveillance platforms. Beck Wireless COFDM technology offers unbeatable, robust, and secure communication for UGVs, UAVs, and surveillance applications worldwide, with superior Non-Line-of-Sight (NLOS) performance compared to other solutions, all while being cost-effective.
